Product Advantages
Robust System Design and Engineering Integration

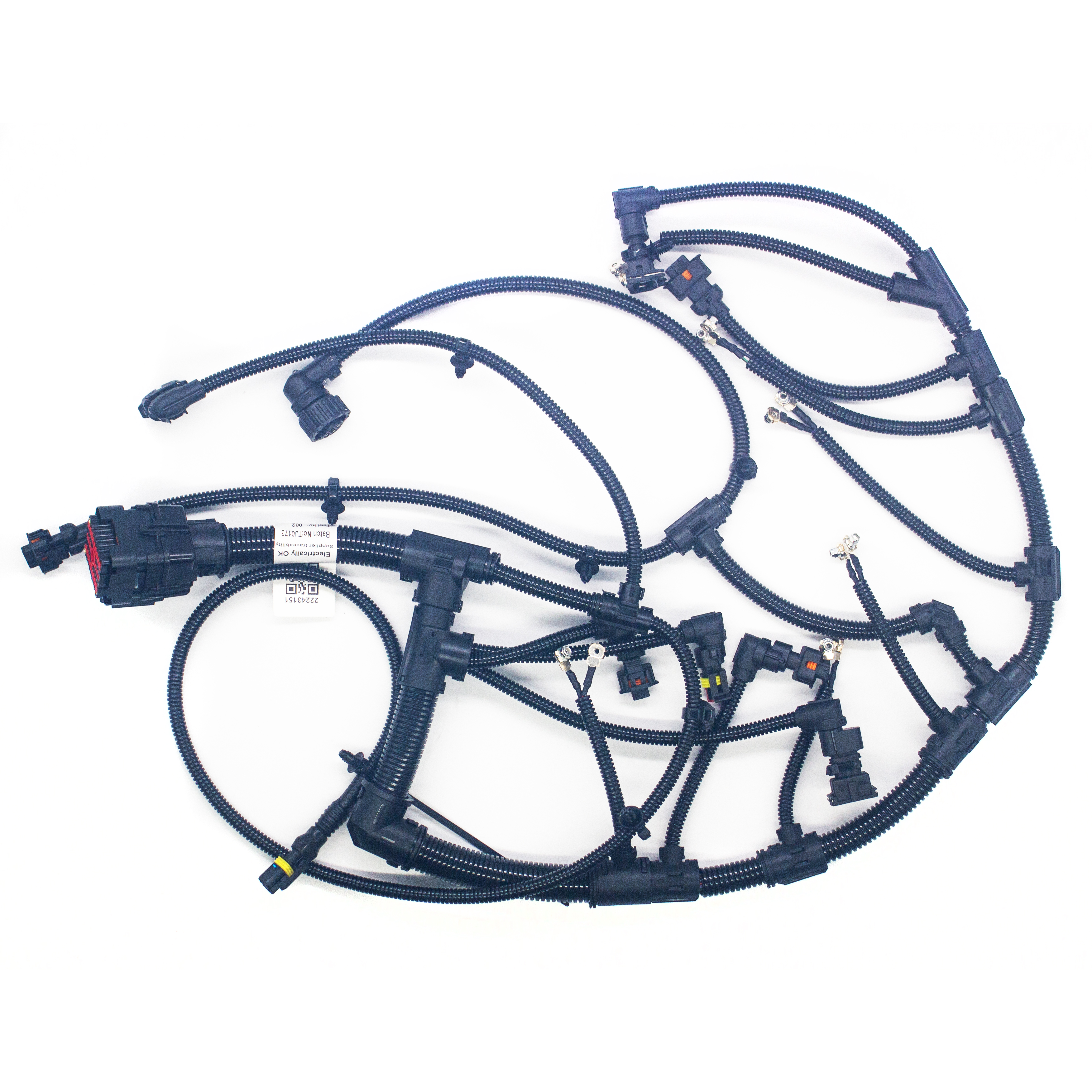

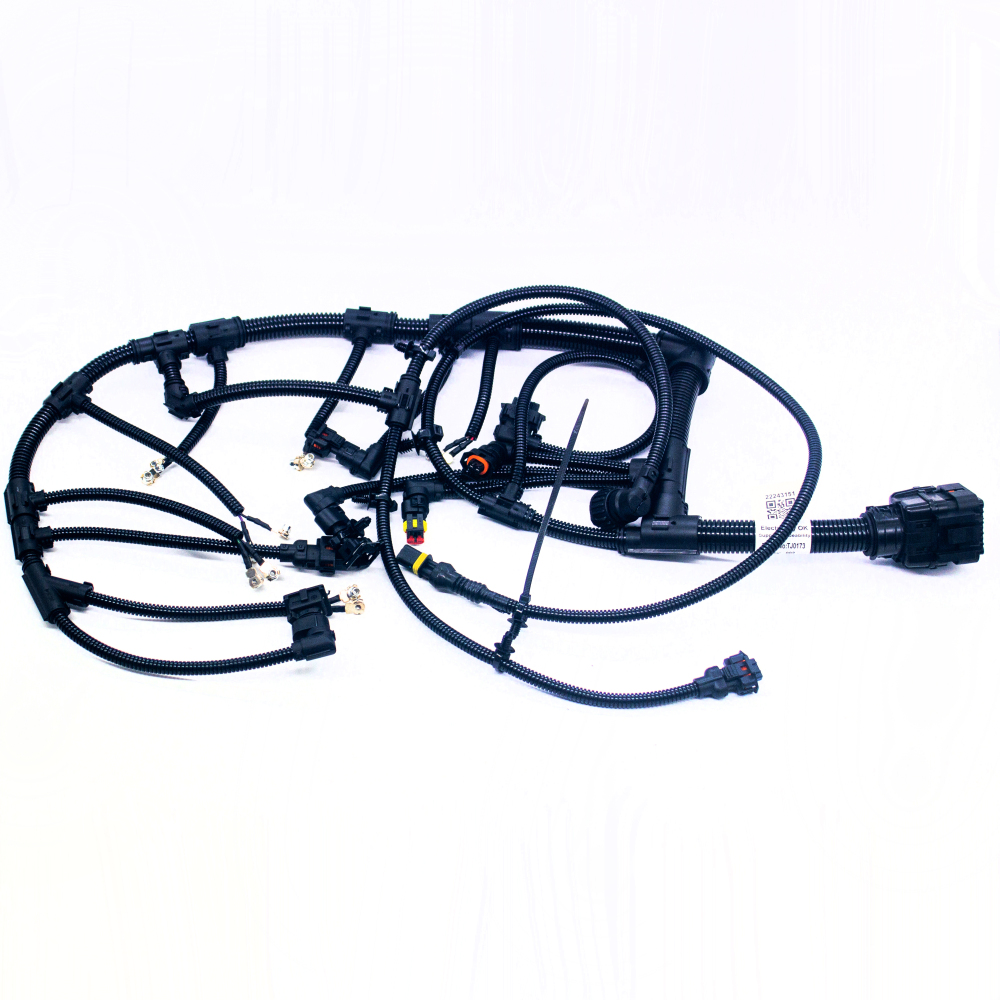

The Volvo wire harness boasts a modular design that facilitates quick connection and secure mounting with stainless steel clamps. Its multi-layer insulation structure and UL94 V-0 fire-retardant spiral wrap protect against environmental hazards and mechanical wear. The cable harness assembly adheres to ISO 6722 and SAE J1128 standards, supporting versatile voltage systems (12V/24V). This structural integrity provides a long-lasting installation compatible with complex Volvo excavator electrical networks.
Enhanced Performance and User Convenience
Users will appreciate the harness’s dependable electrical conductivity and stable signal transmission, reducing downtime caused by voltage drops or wiring failures. The complete electrical wiring harness kit includes cleaning tools and diagnostic resources, streamlining maintenance and repair activities. Adjustable length options allow customization for diverse excavator models and configurations. This thoughtful usability design promotes easy installation, improved safety, and extended service life, delivering measurable operational value.
Precision Engineered for VOLVO Truck Performance
This heavy-duty wiring harness is meticulously crafted to meet VOLVO truck manufacturers' original specifications, ensuring flawless integration with engine control units (ECUs), sensors, and power distribution systems.
Core Features
✅ Smart Compatibility
✅ Rugged Construction
-
Triple-layer insulation: Silicone + Fiberglass Braid + PET Sleeve
-

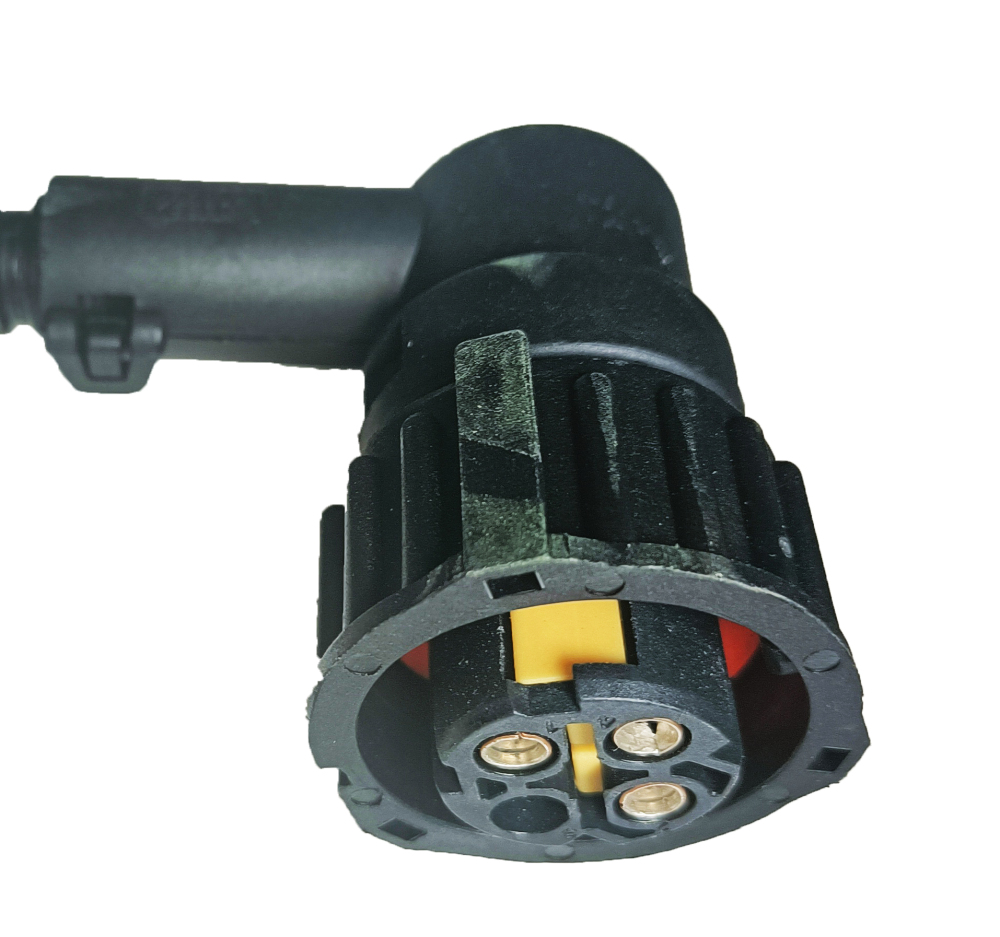

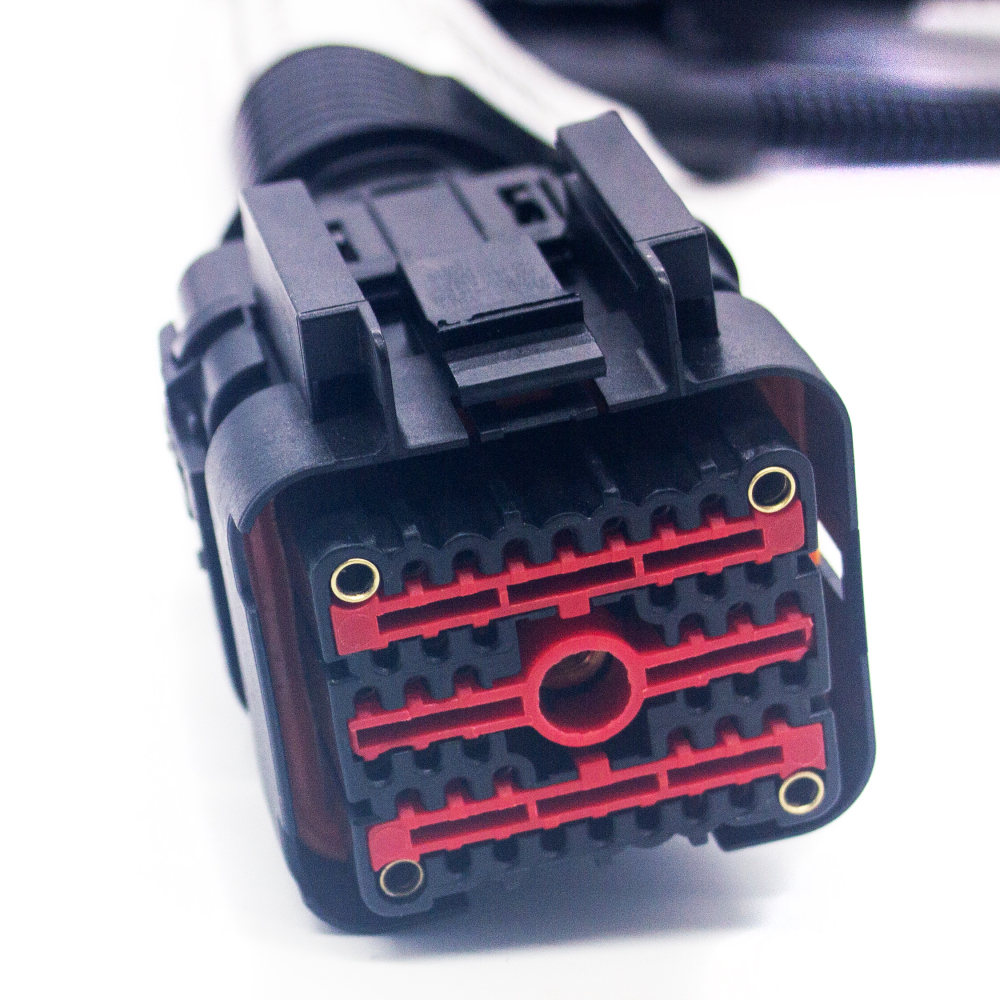

Gold-plated Deutsch DT connectors (10% thicker plating vs standard)
-
Abrasion-resistant spiral wrap with fire-retardant coating (UL94 V-0)
✅ Enhanced Reliability
-
Bench-tested: 48hr salt spray (ASTM B117) & 500G shock resistance
-
Operating range: -58°F to 302°F (-50°C to 150°C)
-
0.5μ gold flash terminals prevent voltage drop
Technical Specifications
▪ Wire Gauge: 14-20 AWG (by circuit requirements)
▪ Voltage Rating: 12V/24V Dual System Ready
▪ Certifications: ISO 6722, SAE J1128, RoHS
▪ Harness Length: Customizable 3ft-22ft
Applications
▫ VOLVO Long-haul Trucks (FH Series)
▫ Construction & Mining Vehicles (A40G ADT)
▫ Refrigerated Transport Cooling Systems
▫ Aftertreatment & DEF System Wiring
Package Includes
1x Complete Wiring Harness Assembly
VOLVO-Specific Diagnostic Code Handbook (PDF via QR)
6x Stainless Steel Mounting Clamps
Waterproof Terminal Cleaning Kit
Why Trust Us
Manufactured in IATF 16949-certified facilities with 100% continuity testing. Each harness undergoes 23-point QC checks, including Hi-Pot testing (500V AC) and CAN bus signal validation.
Note: Independent aftermarket product. Not affiliated with VOLVO Group but engineered to exceed OE performance standards.
Use Scenarios
Excavator Maintenance and Field Repairs
In construction and earthmoving environments, the Volvo wiring harness serves as a critical component for replacing damaged or worn-out harnesses on models such as the EW180 and EC210. Its rugged insulation and shock resistance enable it to withstand vibrations, moisture, and dust commonly encountered onsite. Technicians can rapidly replace or upgrade wiring setups, reducing machine downtime and ensuring compliance with OEM electrical standards. Integration with diagnostic codes and mounting clamps further supports streamlined service workflows.
Retrofitting and Upgrading Heavy Equipment
During major equipment overhauls or upgrades involving aftertreatment or sensor installation, this wire harness assembly offers reliable connectivity and environmental protection. Customized cable lengths accommodate diverse machine layouts, while gold-plated connectors maintain signal integrity in challenging conditions. Its certification and bench-test validations confirm compatibility with Volvo systems, enabling users to implement electrical system enhancements with confidence. This flexibility supports equipment modernization initiatives across mining, quarrying, and industrial transportation sectors.
FAQ
Which materials are used in your Volvo wiring harness assembly to ensure durability?
We craft our Volvo wiring harness with triple-layer insulation, including silicone, fiberglass braid, and a PET sleeve. The gold-plated Deutsch DT connectors and abrasion-resistant spiral wrap with fire-retardant coating further guarantee long-lasting performance under harsh conditions.
Can I get a custom-length cable harness assembly for my specific excavator setup?
Yes, we offer customizable lengths for our cable harness assembly ranging from 3 ft to 22 ft. This flexibility lets you tailor the wiring harness to fit different Volvo excavator configurations precisely, providing a clean and secure installation.
Is professional installation support available for the electrical wiring harness?
While we design our electrical wiring harness for easy, plug-and-play installation, we also provide a Volvo-specific diagnostic code handbook in PDF format to assist technicians. Our waterproof terminal cleaning kit and mounting clamps further facilitate onsite or workshop installations.
How do you ensure the quality and reliability of your Volvo wire harnesses during production?
Our manufacturing process follows IATF 16949 certification with strict 23-point quality checks, including Hi-Pot electrical testing and CAN bus signal validation. We also bench-test each Volvo wire harness under 48-hour salt spray and 500G shock resistance to guarantee durability and reliability.
