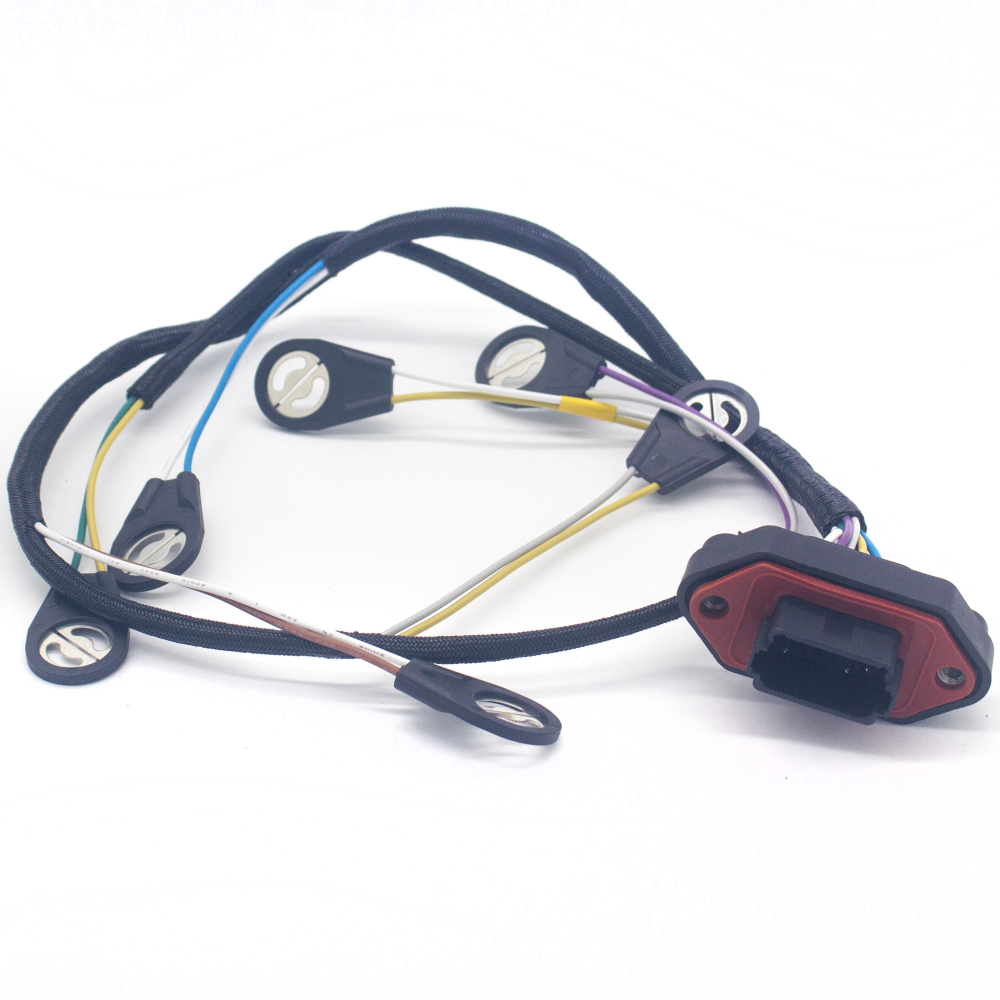

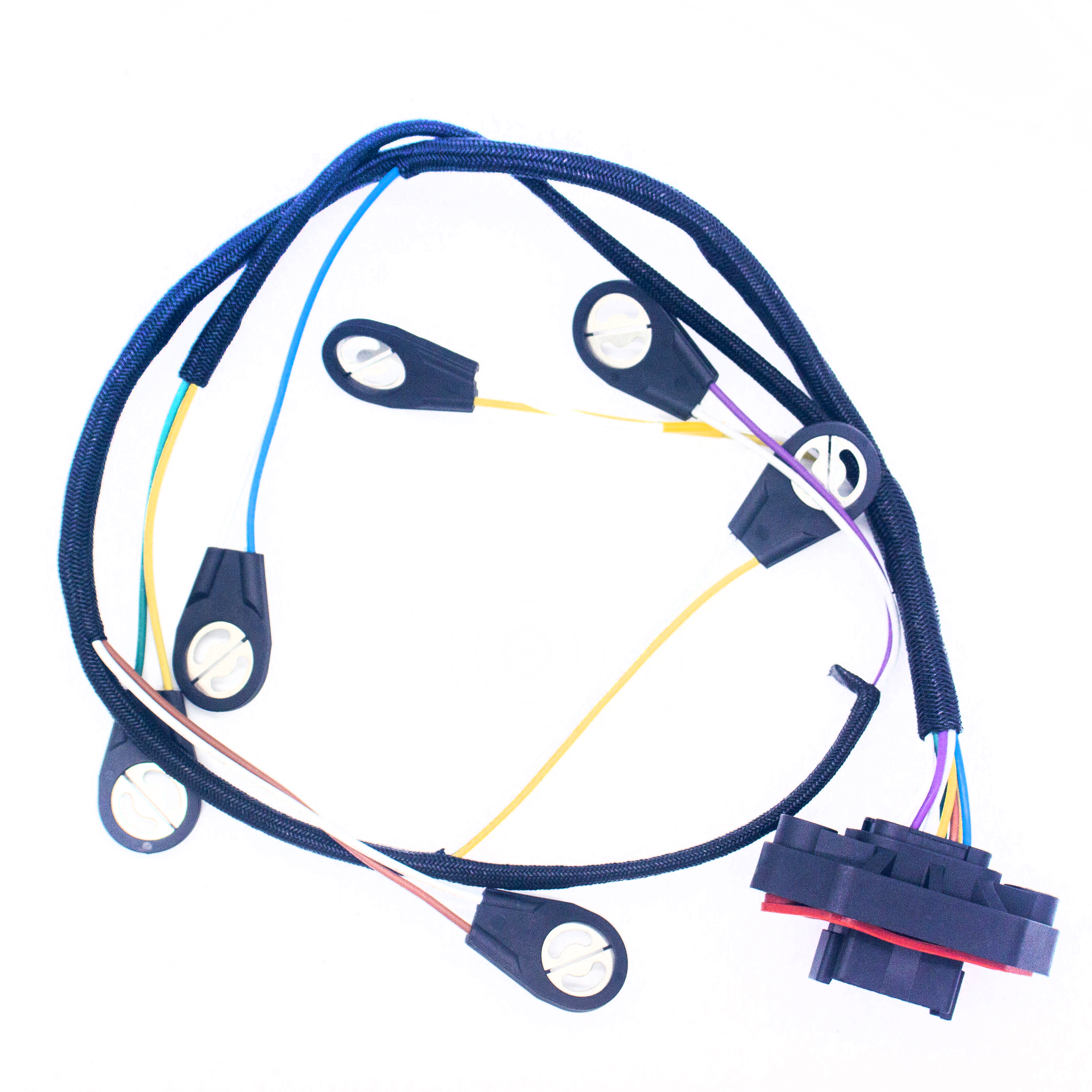

Professional-Grade Wiring Solution for Caterpillar Equipment
This precision-engineered wiring harness is specifically designed to meet the rigorous demands of Caterpillar® engines, providing reliable electrical connectivity for optimal equipment performance.
Key Features:
✅ Full Compatibility: Exact match for CAT engine models C18 Engine New Model
✅ Military-Grade Construction:
-
High-temp resistant cross-linked polyethylene (XLPE) insulation
-
Corrosion-proof brass terminals with gold plating
-
Double-shielded cables (16 AWG core)
✅ Simplified Installation:
-
Color-coded connectors with keyed alignment
-
Pre-terminated end loops & mounting brackets
-
Includes waterproof splice kit (butyl rubber seals)
Technical Specifications:
▪ Voltage Rating: 12V/24V DC
▪ Temp Range: -40°F to 257°F (-40°C to 125°C)
▪ Certifications: SAE J1128, ISO 6722-2011
▪ Warranty: 1-year replacement guarantee
Applications:

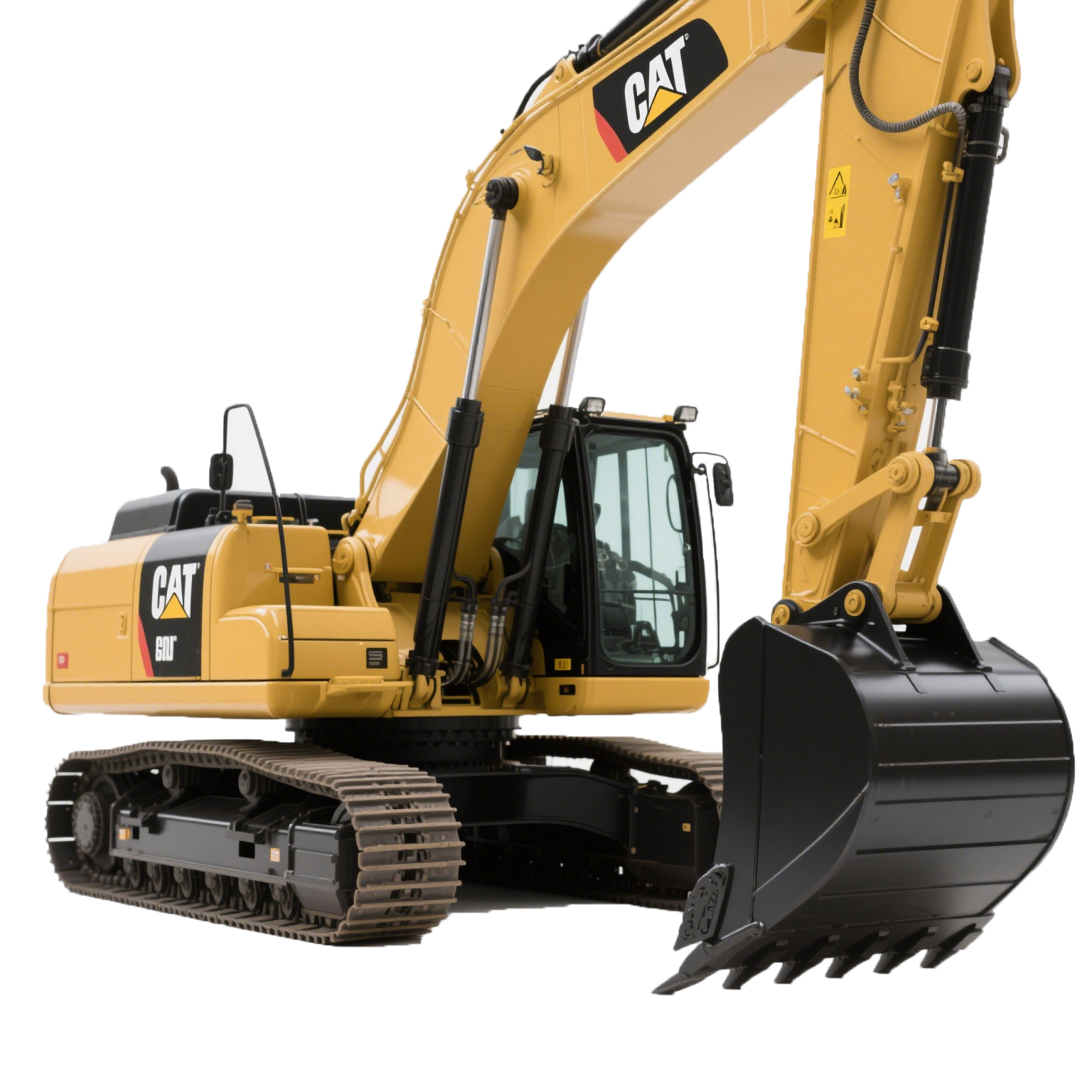

▫ CAT Excavators
▫ Power Generation Units
▫ Mining & Construction Equipment
▫ Marine Propulsion Systems
Package Includes:
1x Complete Wiring Harness Assembly
2x Emergency Repair Connectors
Technical Compliance Documentation
Why Choose This Harness:
Our CAT-compatible electrical system bundle undergoes 23 quality control checkpoints, including salt-spray testing (ASTM B117) and vibration simulation (SAE J2380). The spiral-wrap design prevents chafing damage while maintaining 15% greater flexibility than standard harnesses.
Note: This aftermarket part is not affiliated with Caterpillar Inc. but meets original equipment specifications.
This structure combines technical credibility with customer-centric benefits while optimizing for search terms like "CAT engine wiring harness", "OEM replacement", and "heavy-duty electrical bundle". The detailed specs help buyers make informed decisions while maintaining compliance with trademark guidelines.
Product Advantages
Optimized Design for Rugged Environments
The wire harness assembly features a modular design facilitating ease of installation and secure connection management. Its color-coded connectors with keyed alignment ensure error-free wiring, reducing troubleshooting efforts. Constructed with double-shielded cables, the harness effectively resists electromagnetic interference and mechanical wear. Corrosion-proof brass terminals with gold plating maintain electrical conductivity and durability under harsh operating conditions. A waterproof splice kit and pre-terminated mounting hardware complete the design, allowing quick integration into existing electrical systems without compromising safety or performance.
Enhanced Reliability and User-Friendly Maintenance
This engine wiring harness provides consistent electrical performance, supporting both 12V and 24V DC systems over a wide temperature range. Its robust insulation and terminal plating reduce downtime caused by wire deterioration or environmental exposure. The design prioritizes user convenience by enabling efficient installation and replacement, backed by a one-year replacement warranty. For end users, this ensures dependable engine operation with minimized maintenance risks, providing peace of mind and enhanced return on investment through extended equipment life and reduced repair frequency.
Use Scenarios
Heavy Machinery Electrical Maintenance and Repair
In the mining and construction sectors, equipment reliability is crucial to operational efficiency. This electrical wiring harness plays a vital role in maintaining CAT engine electrical systems within excavators, bulldozers, and loaders. Its rugged design endures exposure to vibration, dust, and moisture commonly encountered on-site, protecting critical electrical connections. The harness’s OEM-compatible specifications enable quick replacement parts stocking and rapid field servicing. By integrating into the existing electrical framework with color-coded connectors, the harness simplifies diagnostics and wiring accuracy, thus minimizing equipment downtime and optimizing workflow continuity.
Marine Propulsion System Upgrades and Retrofits
Marine vessels powered by CAT engines require durable electrical wiring solutions capable of withstanding harsh marine environments. This wire harness meets rigorous corrosion resistance and waterproofing needs, ensuring stable operation despite saltwater exposure and temperature fluctuations. Its double-shielded cables and corrosion-proof terminals ensure consistent connectivity vital for propulsion control and auxiliary equipment. Integration of this harness into marine engine systems delivers enhanced operational safety and reliability while complying with industry standards. It supports routine upgrades and retrofits, helping vessel operators maintain peak performance and extended engine service life under demanding maritime conditions.
FAQ
What materials are used in your engine wiring harnesses?
Our premium engine wiring harness uses high-temperature XLPE insulation, corrosion-proof brass terminals with gold plating, and double-shielded cables to ensure durability and protection against abrasion and vibration, providing reliable performance in harsh conditions.
Can you customize the wire harness assembly to fit specific CAT engine models?
Yes, we design each wire harness assembly to match exact CAT engine compatibility. If you need custom specifications or bulk orders, we offer flexible solutions to meet your project requirements.
How do I install the Caterpillar-compatible wiring harness properly?
Our harness features color-coded connectors with keyed alignment, pre-terminated end loops, and mounting brackets to simplify installation. We also include a waterproof splice kit to protect joints in wet or dusty environments, ensuring secure and straightforward setup.
What support do you provide after purchasing electrical wiring harnesses?
We back all our products with a 1-year replacement warranty and ongoing technical support. Our team is ready to assist with installation questions or troubleshooting to help maintain your equipment’s electrical system integrity.
