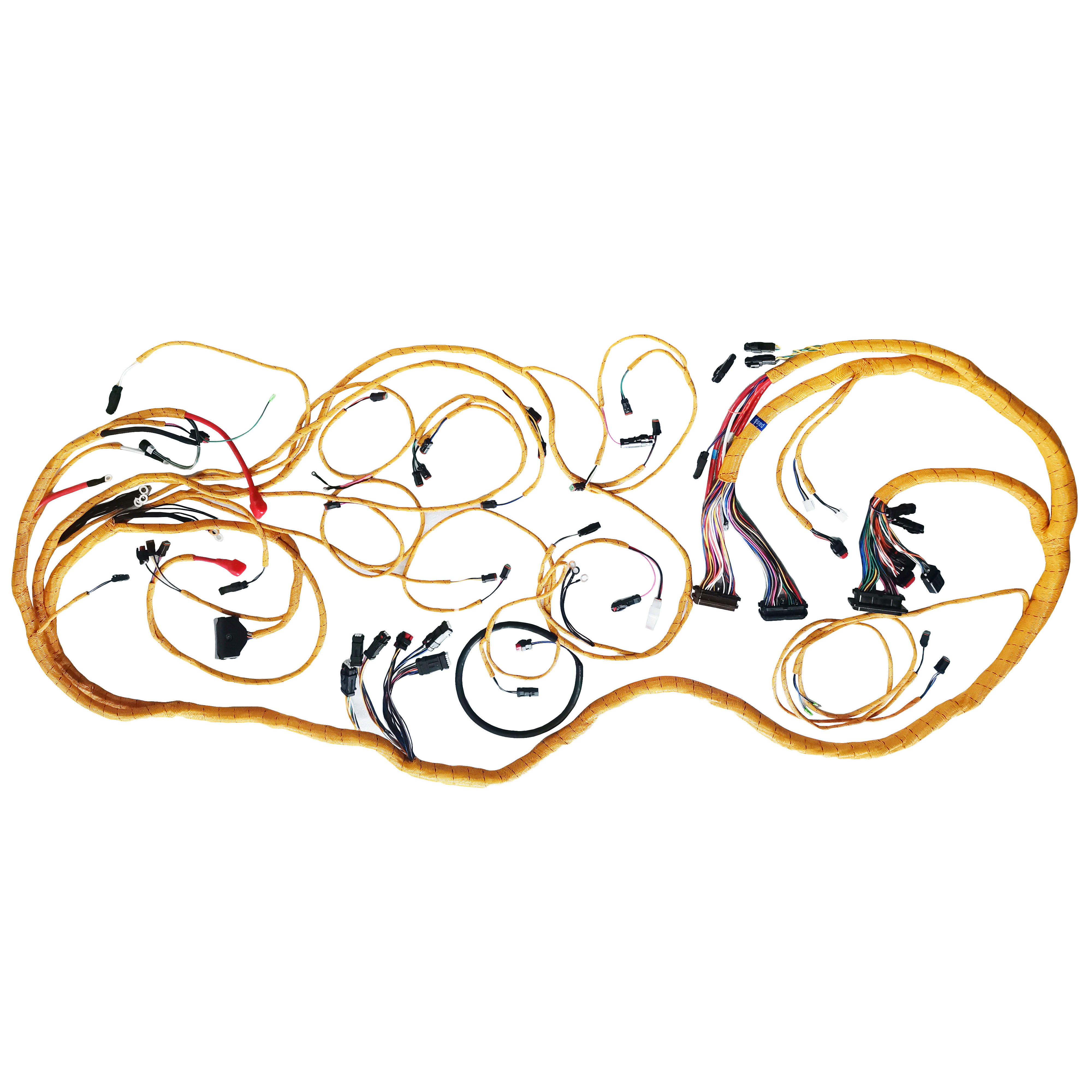

Professional-Grade Wiring Solution for Caterpillar Equipment
This precision-engineered wiring harness is specifically designed to meet the rigorous demands of Caterpillar® engines, providing reliable electrical connectivity for optimal equipment performance.
Key Features:
✅ Full Compatibility: Exact match for CAT engine models C18 Engine New Model
✅ Military-Grade Construction:
-
High-temp resistant cross-linked polyethylene (XLPE) insulation
-
Corrosion-proof brass terminals with gold plating
-
Double-shielded cables (16 AWG core)
✅ Simplified Installation:
-
Color-coded connectors with keyed alignment
-
Pre-terminated end loops & mounting brackets
-
Includes waterproof splice kit (butyl rubber seals)
Technical Specifications:
▪ Voltage Rating: 12V/24V DC
▪ Temp Range: -40°F to 257°F (-40°C to 125°C)
▪ Certifications: SAE J1128, ISO 6722-2011
▪ Warranty: 1-year replacement guarantee
Applications:
▫ CAT Excavators
▫ Power Generation Units
▫ Mining & Construction Equipment
▫ Marine Propulsion Systems
Package Includes:
1x Complete Wiring Harness Assembly
2x Emergency Repair Connectors
Technical Compliance Documentation
Why Choose This Harness:
Our CAT-compatible electrical system bundle undergoes 23 quality control checkpoints, including salt-spray testing (ASTM B117) and vibration simulation (SAE J2380). The spiral-wrap design prevents chafing damage while maintaining 15% greater flexibility than standard harnesses.
Note: This aftermarket part is not affiliated with Caterpillar Inc. but meets original equipment specifications.
This structure combines technical credibility with customer-centric benefits while optimizing for search terms like "CAT engine wiring harness", "OEM replacement", and "heavy-duty electrical bundle". The detailed specs help buyers make informed decisions while maintaining compliance with trademark guidelines.
Product Advantages
Structural and Design Excellence
The wiring harness boasts a modular architecture that aligns with original CAT engine wiring schematics, ensuring hassle-free integration. Double-shielded 16 AWG cable harnesses enhance electromagnetic interference protection. The use of XLPE insulation and corrosion-proof brass terminals with gold plating contributes to mechanical robustness and environmental resistance. Additionally, pre-terminated end loops and mounting brackets streamline assembly, while the included waterproof splice kit supports stable moisture protection. This well-thought-out design permits compatibility with varied CAT engine models, delivering a system-level synergy tailored to professional equipment servicing needs.
Enhanced Performance and User Convenience
Users benefit from a wiring harness designed for rapid installation and minimal maintenance. Color-coded connectors with keyed alignment reduce installation errors and speed up repair times. The harness’s operating temperature range and voltage rating ensure stable electrical performance under demanding conditions. Durability against vibration, corrosion, and moisture extends service life, thus minimizing costly downtime. With an OEM-spec build and a one-year replacement warranty, this automotive wire harness offers peace of mind and reliable functionality, supporting technicians and equipment owners in maintaining optimal engine performance throughout operational cycles.
Use Scenarios
Application in Heavy Construction Equipment Maintenance
Within construction environments, CAT excavators and machinery often endure harsh conditions that challenge electrical system integrity. This engine wiring harness plays a critical role in maintaining stable electrical connectivity for such heavy equipment. Its rugged double-shielded cable design and corrosion-resistant terminals withstand the demanding elements encountered on-site. By integrating directly into existing CAT engine wiring systems, it supports efficient fleet upkeep and rapid component replacement. Technicians can rely on its compatibility and durability to minimize operational interruptions, ensuring continuous productivity on construction sites.
Role in Marine Propulsion Electrical Systems
The marine industry demands electrical components that endure exposure to moisture, salt, and vibration. This cable harnesses product addresses these challenges with waterproof splice kits and high-grade insulation materials, providing reliable connections within marine propulsion units powered by CAT engines. Its compliance with recognized industry certifications supports safety and performance standards critical in marine settings. In integration with vessel electrical systems, this wiring harness facilitates dependable power transmission and signal integrity, enhancing engine control and monitoring capabilities essential to marine operations and safety compliance.
FAQ
What makes your engine wiring harness suitable for heavy-duty CAT equipment?
Our premium engine wiring harness is built with XLPE insulation and gold-plated brass terminals to withstand high temperatures and corrosion. Designed for CAT engines like C18 and C9, it meets strict SAE and ISO standards, ensuring durable and reliable performance in harsh mining, construction, and marine environments.
Can you customize wiring harnesses to match specific CAT engine requirements?
Yes, we offer tailored wiring harness production based on customer drawings or samples. Our engineering team can adapt the electrical wire harness design to fit unique project needs while maintaining OEM-spec quality and compatibility with CAT engine models.
How does the installation process of this wiring harness work for a typical CAT excavator?
Our harness includes color-coded connectors with keyed alignment and pre-terminated end loops for straightforward installation. Mounting brackets and a waterproof splice kit are also provided, making the replacement of the wiring harness on CAT excavators efficient and minimizing downtime on the job site.
What shipping and warranty options do you provide for your cable harnesses?
We ship globally with timely delivery and support. Every cable harness comes with a 1-year replacement warranty to ensure your investment is protected. Our customer service team is available for assistance during installation, maintenance, or any technical inquiries.
