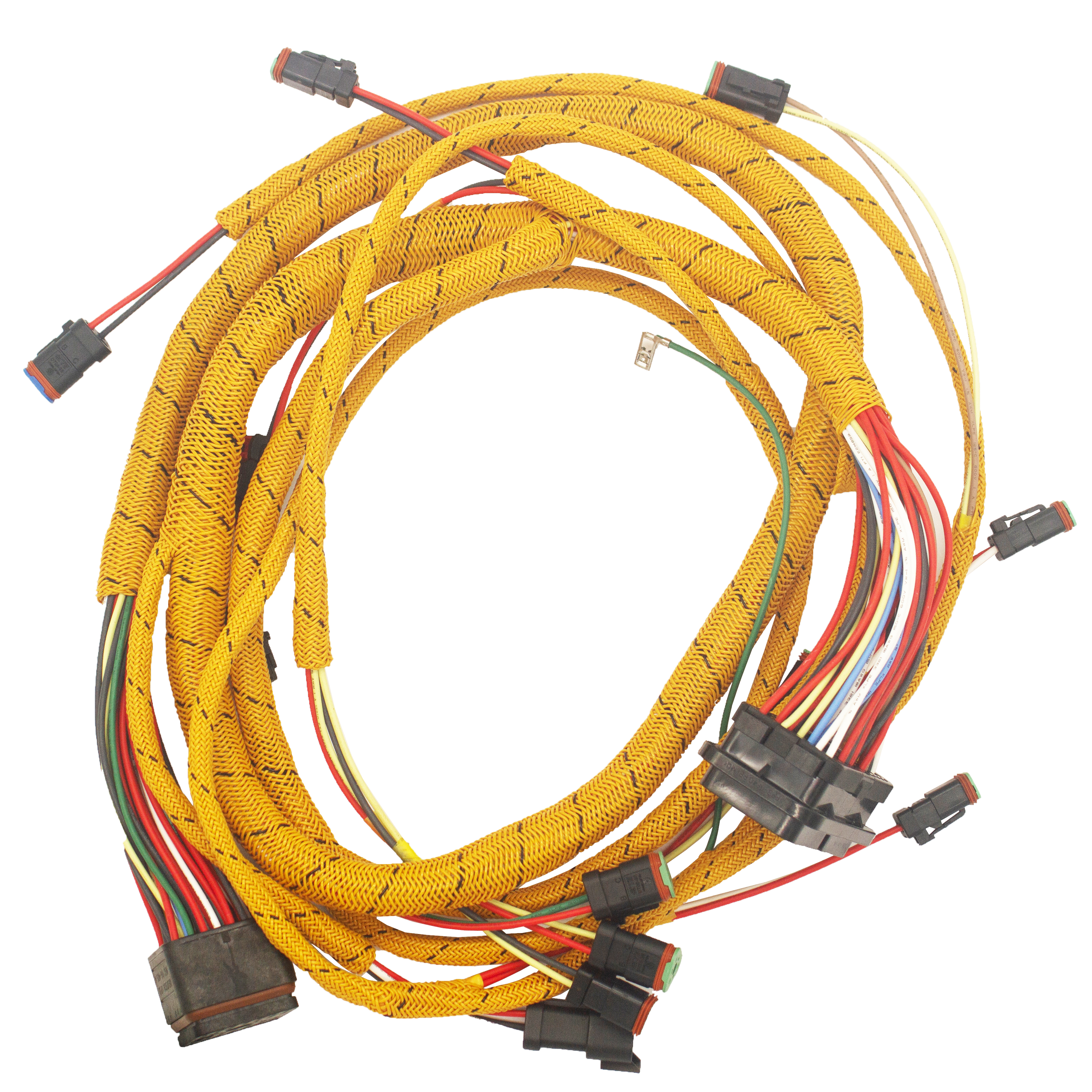

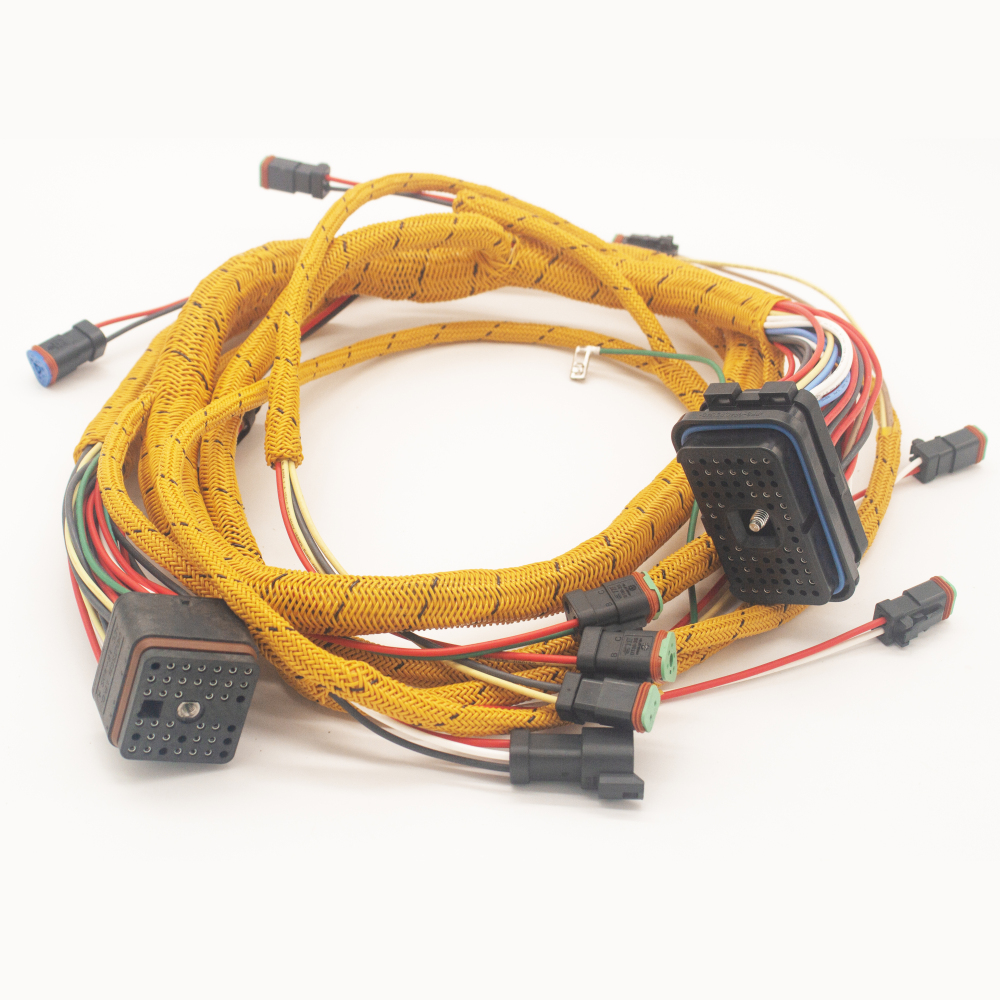

Professional-Grade Wiring Solution for Caterpillar Equipment
This precision-engineered wiring harness is specifically designed to meet the rigorous demands of Caterpillar® engines, providing reliable electrical connectivity for optimal equipment performance.
Key Features:
✅ Full Compatibility: Exact match for CAT engine models C18 Engine New Model
✅ Military-Grade Construction:
-
High-temp resistant cross-linked polyethylene (XLPE) insulation
-
Corrosion-proof brass terminals with gold plating
-
Double-shielded cables (16 AWG core)
✅ Simplified Installation:
-
Color-coded connectors with keyed alignment
-
Pre-terminated end loops & mounting brackets
-
Includes waterproof splice kit (butyl rubber seals)
Technical Specifications:
▪ Voltage Rating: 12V/24V DC
▪ Temp Range: -40°F to 257°F (-40°C to 125°C)
▪ Certifications: SAE J1128, ISO 6722-2011
▪ Warranty: 1-year replacement guarantee
Applications:
▫ CAT Excavators
▫ Power Generation Units
▫ Mining & Construction Equipment
▫ Marine Propulsion Systems
Package Includes:
1x Complete Wiring Harness Assembly
2x Emergency Repair Connectors
Technical Compliance Documentation
Why Choose This Harness:
Our CAT-compatible electrical system bundle undergoes 23 quality control checkpoints, including salt-spray testing (ASTM B117) and vibration simulation (SAE J2380). The spiral-wrap design prevents chafing damage while maintaining 15% greater flexibility than standard harnesses.
Note: This aftermarket part is not affiliated with Caterpillar Inc. but meets original equipment specifications.
This structure combines technical credibility with customer-centric benefits while optimizing for search terms like "CAT engine wiring harness", "OEM replacement", and "heavy-duty electrical bundle". The detailed specs help buyers make informed decisions while maintaining compliance with trademark guidelines.
Product Advantages
Structural Design Optimized for Efficiency
The cable harness assembly employs a modular design, combining color-coded connectors with keyed alignment to prevent misconnection. Pre-terminated end loops and mounting brackets simplify installation and reduce labor time, while the use of corrosion-resistant brass terminals with gold plating enhances signal integrity and longevity. The incorporation of double-shielded 16 AWG cables protects against electromagnetic interference, ensuring stable data and power transmission. This wire harness integrates seamlessly into CAT engines, offering compatibility without modifications, which supports efficient servicing and replacement cycles.
Enhanced Performance and User Convenience
Technicians benefit from the waterproof splice kit which facilitates field repairs and weatherproofing, improving the harness’s operational reliability in harsh environmental conditions. The high-temp XLPE insulation ensures insulation stability under extreme temperature variations, reducing the risk of electrical faults. The product’s design provides straightforward routing and secure mounting, promoting safer engine operation. For end users, this engine wiring harness offers dependable performance that can significantly lower maintenance costs by preventing electrical system failures and minimizing installation complexity in both replacement and retrofit scenarios.
Use Scenarios
Replacement in Caterpillar Equipment Maintenance
Within the heavy machinery maintenance sector, replacing worn or damaged engine wiring harnesses is critical to maintaining equipment reliability. This engine wiring harness plays a vital role in restoring original electrical performance in Caterpillar engines, especially under harsh operating conditions typical of construction and mining sites. Its corrosion-resistant brass terminals and waterproof features ensure long-lasting connections despite exposure to dust, moisture, and vibrations. Integration into maintenance workflows is streamlined via color-coded connectors and pre-terminated loops, enabling technicians to perform quick and precise replacements in compliance with original equipment specifications.
OEM-spec Installation Planning for Engine Upgrades
In engineering and fleet management environments, this electrical wiring harness supports OEM-spec installation projects aimed at upgrading the electrical system of CAT engines. It ensures consistent wiring routing and alignment across machinery, facilitating system integration with electronic engine controls and sensors. Compliance with SAE and ISO standards reinforces safety and operational reliability. The harness’s robust construction reduces wire failure risk, which is critical in continuous operation scenarios in agriculture and heavy equipment applications. Its design flexibility enables technicians to incorporate it easily into existing wiring layouts during retrofits or new engine installations.
FAQ
Is your wiring harness compatible with all Caterpillar engine models?
We design our engine wiring harness to match specific CAT engine models, including the C18 New Model. Please check your engine’s requirements to ensure compatibility. While we are not affiliated with Caterpillar Inc., our products meet original equipment specifications for reliable performance.
Can I get a custom cable harness assembly for my equipment?
We focus on producing OEM-spec cable harness assemblies with precise specifications for Caterpillar engines. While our standard harness fits many CAT models exactly, we invite you to contact us for inquiries about tailored solutions or special requirements.
How do I install the wiring harness on my Caterpillar engine?
Our harnesses come with color-coded connectors, keyed alignment, pre-terminated end loops, mounting brackets, and a waterproof splice kit to simplify installation. We recommend following your engine’s service manual and using proper tools to ensure secure connections and optimal electrical performance.
What support do you offer after purchase for maintenance or repairs?
We include a 1-year replacement warranty and emergency repair connectors in the package. Our team is available to help with technical advice on preventative maintenance checks and troubleshooting to maintain the harness’s durability and reliability in harsh conditions.
