Professional-Grade Wiring Solution for Caterpillar Equipment

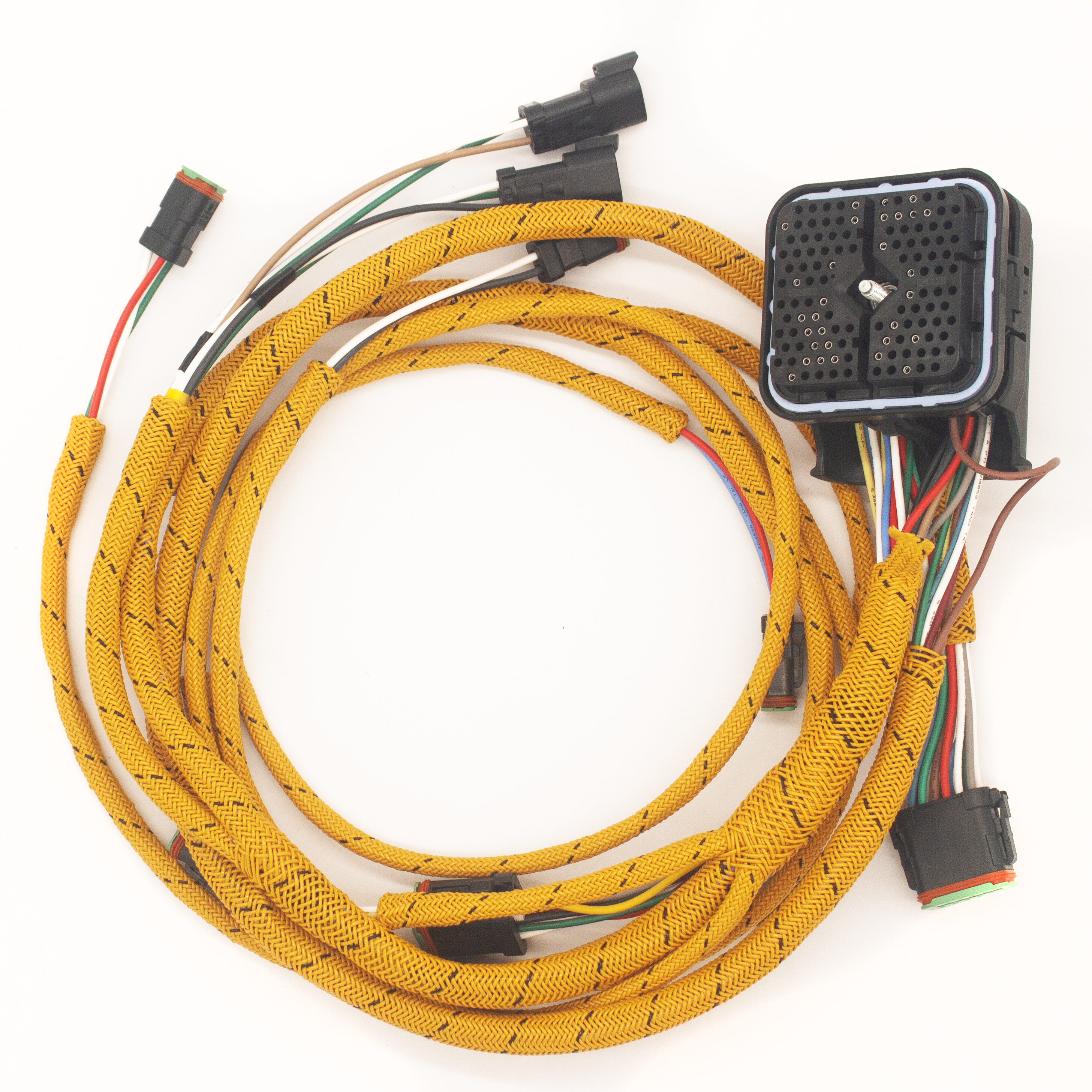

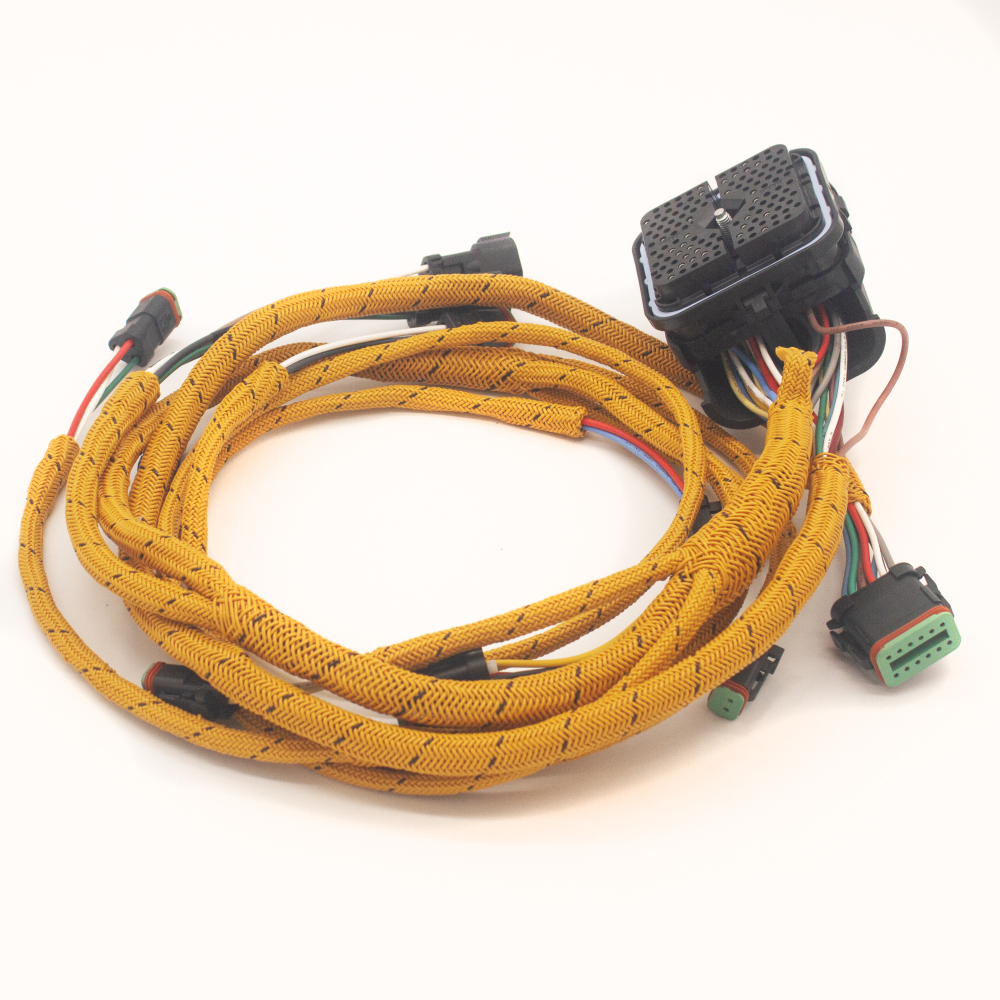

This precision-engineered wiring harness is specifically designed to meet the rigorous demands of Caterpillar® engines, providing reliable electrical connectivity for optimal equipment performance.
Key Features:
✅ Full Compatibility: Exact match for CAT engine models C18 Engine New Model
✅ Military-Grade Construction:
-
High-temp resistant cross-linked polyethylene (XLPE) insulation
-
Corrosion-proof brass terminals with gold plating
-
Double-shielded cables (16 AWG core)
✅ Simplified Installation:
-
Color-coded connectors with keyed alignment
-
Pre-terminated end loops & mounting brackets
-
Includes waterproof splice kit (butyl rubber seals)
Technical Specifications:
▪ Voltage Rating: 12V/24V DC
▪ Temp Range: -40°F to 257°F (-40°C to 125°C)
▪ Certifications: SAE J1128, ISO 6722-2011
▪ Warranty: 1-year replacement guarantee
Applications:
▫ CAT Excavators
▫ Power Generation Units
▫ Mining & Construction Equipment
▫ Marine Propulsion Systems
Package Includes:
1x Complete Wiring Harness Assembly
2x Emergency Repair Connectors
Technical Compliance Documentation
Why Choose This Harness:
Our CAT-compatible electrical system bundle undergoes 23 quality control checkpoints, including salt-spray testing (ASTM B117) and vibration simulation (SAE J2380). The spiral-wrap design prevents chafing damage while maintaining 15% greater flexibility than standard harnesses.
Note: This aftermarket part is not affiliated with Caterpillar Inc. but meets original equipment specifications.
This structure combines technical credibility with customer-centric benefits while optimizing for search terms like "CAT engine wiring harness", "OEM replacement", and "heavy-duty electrical bundle". The detailed specs help buyers make informed decisions while maintaining compliance with trademark guidelines.
Product Advantages
Robust Engineering and Modular Design for Seamless Integration
The harness features a modular design including pre-terminated end loops, mounting brackets, and emergency repair connectors, enabling systematic assembly and flexible adaptation to various CAT engine configurations. Use of quality materials like XLPE insulation and gold-plated terminals elevates system reliability and lifespan. The IP67-rated connectors and waterproof splice kit provide structural resilience against moisture and contaminants. This electrical wire harness system’s OEM-spec design supports consistent electrical performance while simplifying integration into existing engine wiring setups.
Enhanced User Experience with Reliability and Ease of Maintenance
With a focus on practical usability, the harness offers plug-and-play installation that reduces downtime and labor effort. Color-coded connectors and comprehensive component kits facilitate swift identification and repair, even in challenging environments. Designed for heavy equipment users who value durability and service readiness, this cable harness provides a dependable electrical connection with a 1-year replacement warranty for peace of mind. Its wide temperature operating range ensures dependable function in outdoor and mining applications, supporting continuous workflow without interruption.
Use Scenarios
Application in Heavy Construction and Excavation Machinery
In construction environments where rugged conditions prevail, maintaining engine electrical integrity is critical. The engine wiring harness serves as a direct replacement for worn or damaged CAT harnesses in models such as C7 and C9, ensuring consistent power and signal transmission. Its robust design meets industry compliance for harsh outdoor operation, enduring dust, vibration, and temperature extremes. Integration with heavy machinery electrical systems allows maintenance teams to uphold equipment uptime through swift harness replacement or retrofit upgrades, safeguarding operational efficiency on job sites.
Role in Mining Equipment Maintenance and Fleet Management
Mining operations require highly reliable electrical components to withstand demanding underground or surface conditions. This automotive wiring harness plays a vital role in preventive maintenance programs for CAT-powered machinery, enabling efficient wiring repairs and replacements. The waterproof connectors and gold-plated terminals provide enhanced corrosion resistance essential in extreme environments. By incorporating this harness into repair workflows, fleet managers optimize system reliability, reduce unplanned downtime, and maintain compliance with stringent industrial standards, ultimately supporting continuous mining productivity.
FAQ
What materials are used in your engine wiring harness to ensure durability?
Our premium engine wiring harness uses heat-shielded cables with XLPE insulation, brass terminals with gold plating, and double-shielded 16 AWG conductors. These materials provide superior durability and corrosion resistance, ensuring reliable performance under harsh operating conditions.
Can I get a customized wiring harness solution for my CAT engine?
Yes, we offer tailored wiring harness solutions based on your specific CAT engine model or requirements. Our engineering team can develop a customized automotive wiring harness to fit your specifications, ensuring compatibility and high-quality OEM-spec performance.
How easy is it to install the wiring harness on CAT engines?
Our wiring harness is designed for straightforward plug-and-play installation, typically completed within 30 minutes. With color-coded connectors, mounting brackets, and pre-terminated loops, we make installation simple and efficient even for field maintenance teams.
Do you provide international shipping and what packaging do you use?
We ship worldwide, ensuring safe delivery with crush-proof packaging. This protects your electrical wire harness during transit, maintaining product integrity until it arrives at your location, ready for immediate use or installation.
